The 2006 Diamond DA40-FP Diamond Star offers an outstanding opportunity to own one of the industry's most proven and economical training platforms. Powered by the dependable Lycoming IO-360 and equipped with the renowned Garmin G1000 integrated flight deck, this aircraft is an excellent choice for first-time aircraft owners, flight schools, or pilots looking for a reliable IFR-capable cross-country machine. While this aircraft is equipped with a non-WAAS G1000 and does not have an autopilot, its straightforward configuration makes it an ideal platform for developing strong stick-and-rudder skills and instrument proficiency.
With complete logbooks, no known damage history, a January annual inspection, and a reputation for low operating costs and exceptional handling, N410FP represents an affordable entry into Diamond ownership without compromising on capability.
Contact Cody for more details!
AIRFRAME

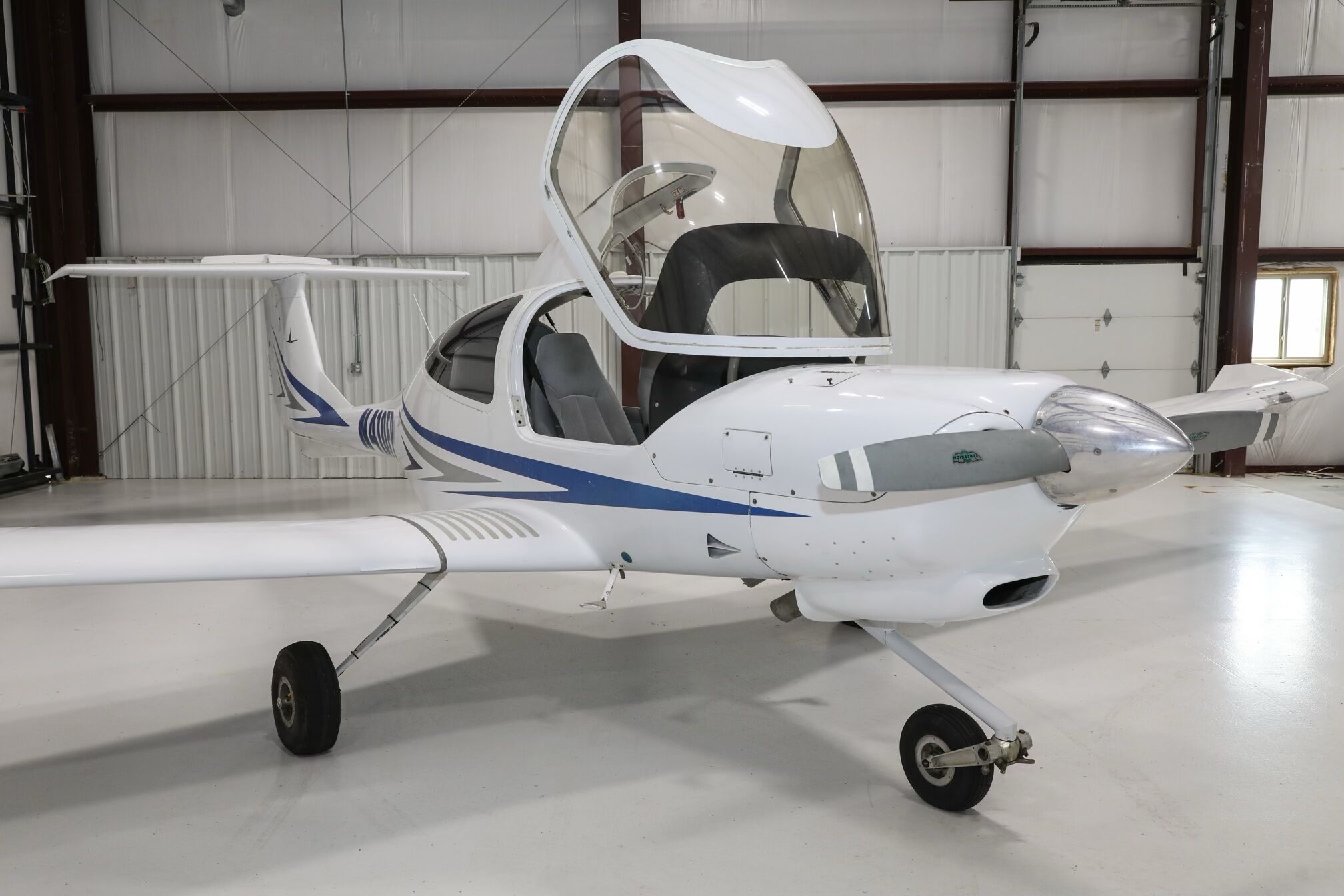

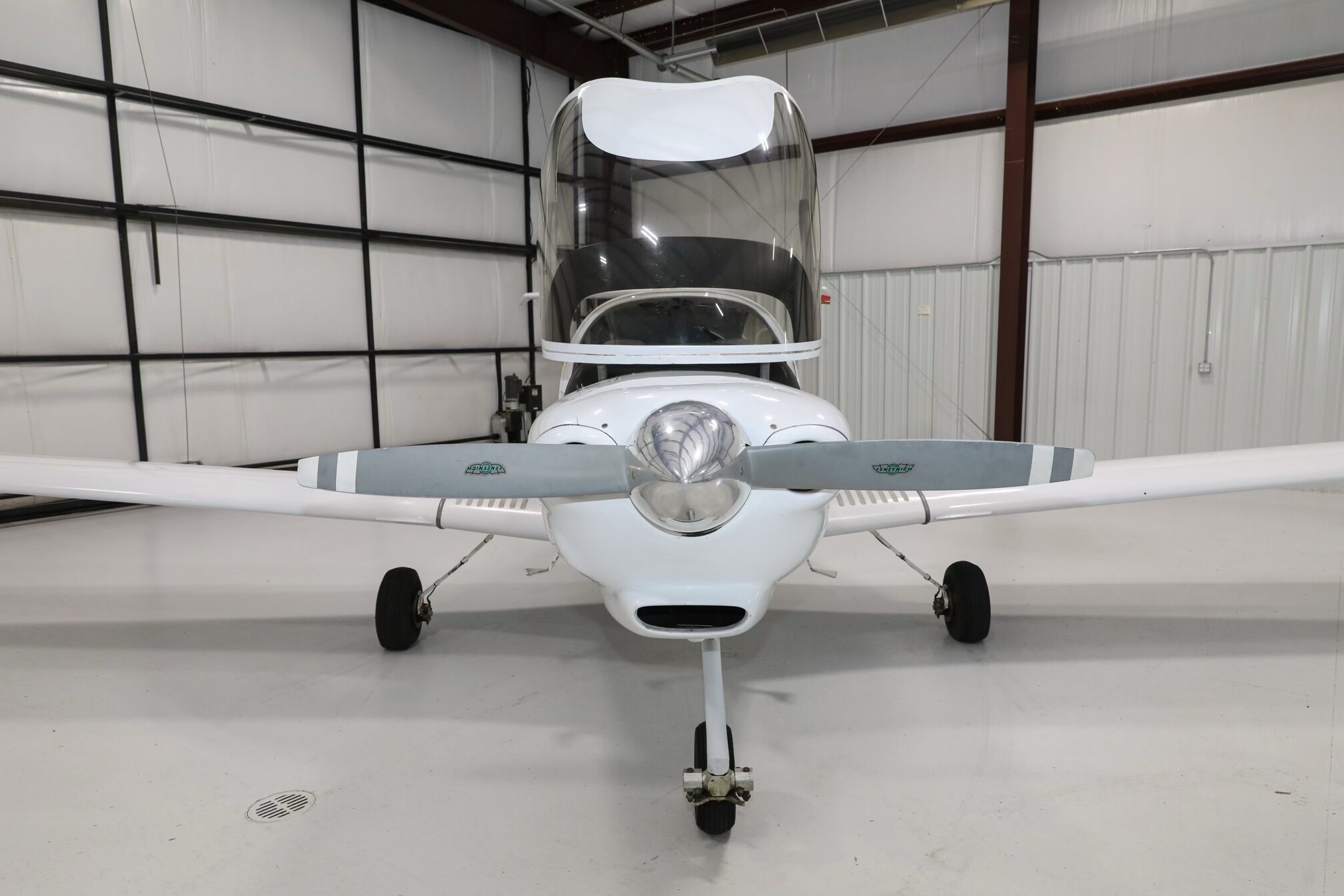

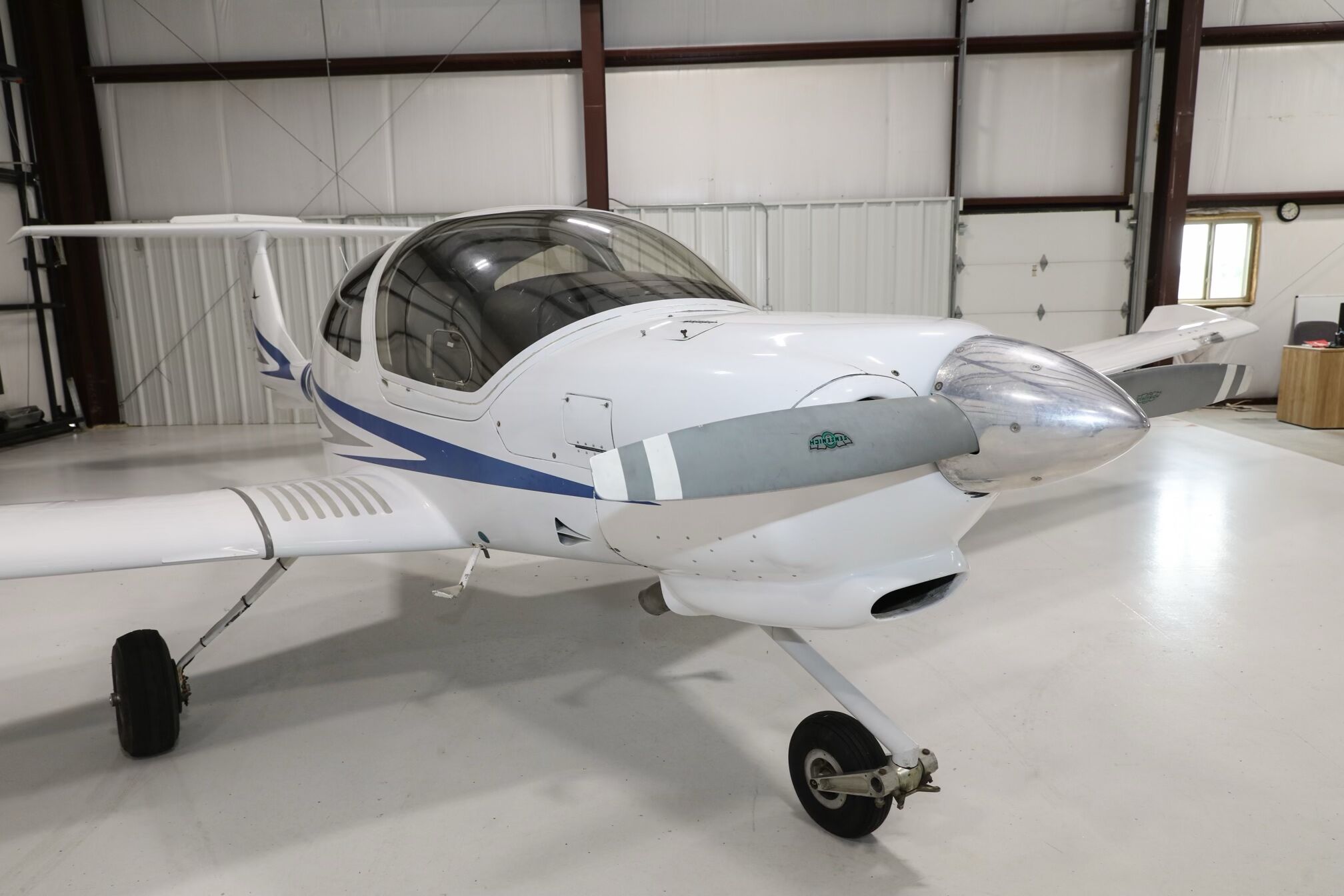

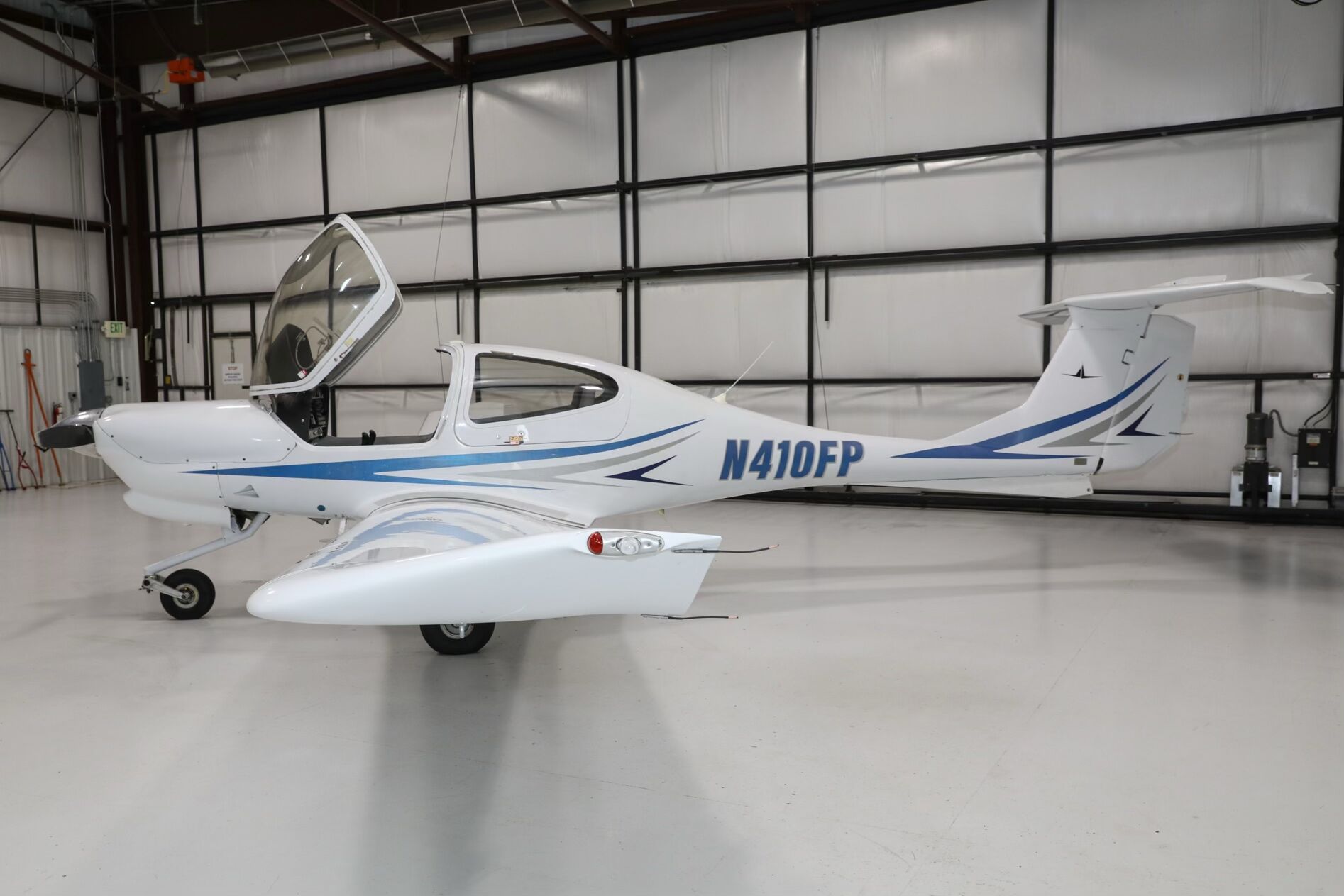

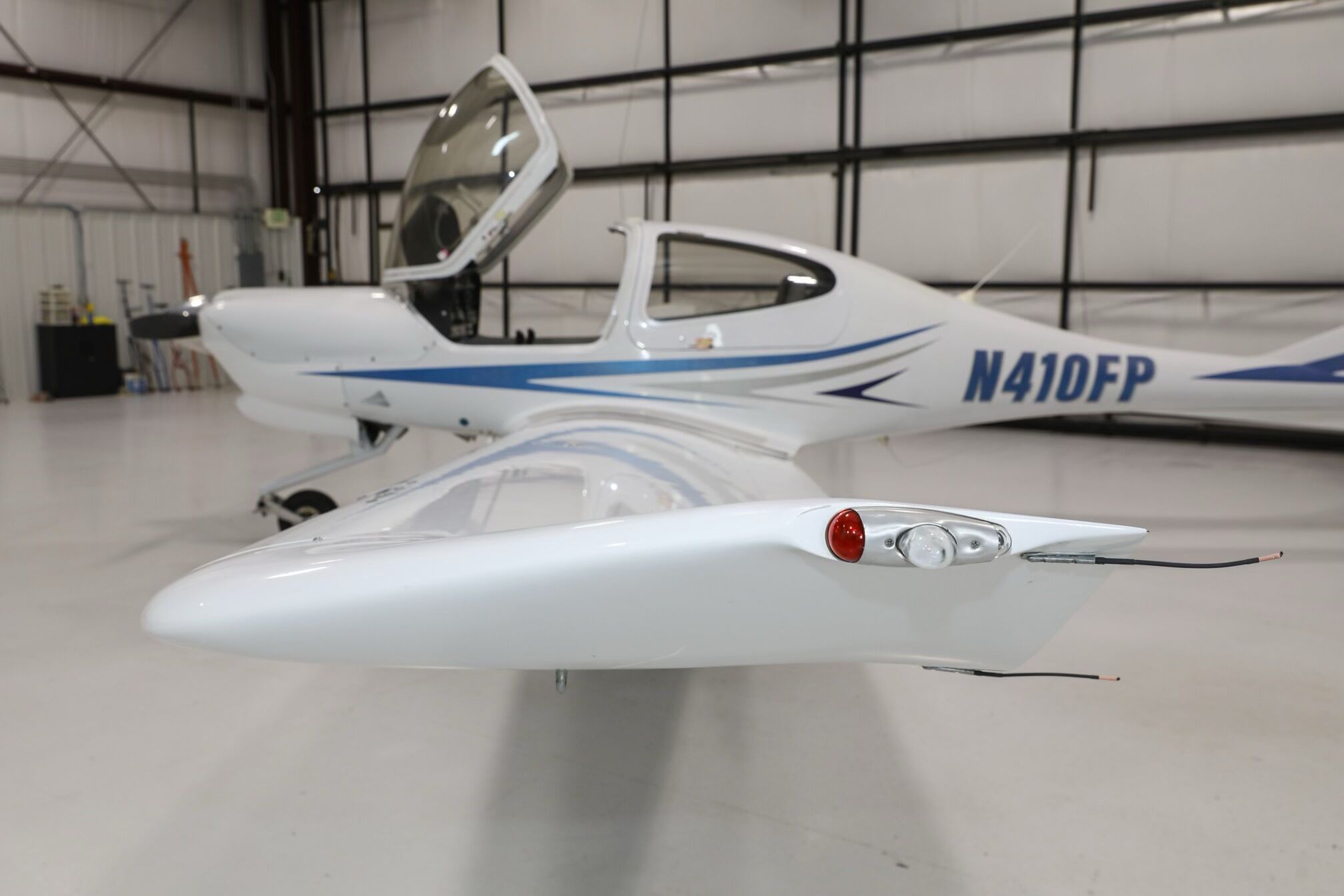

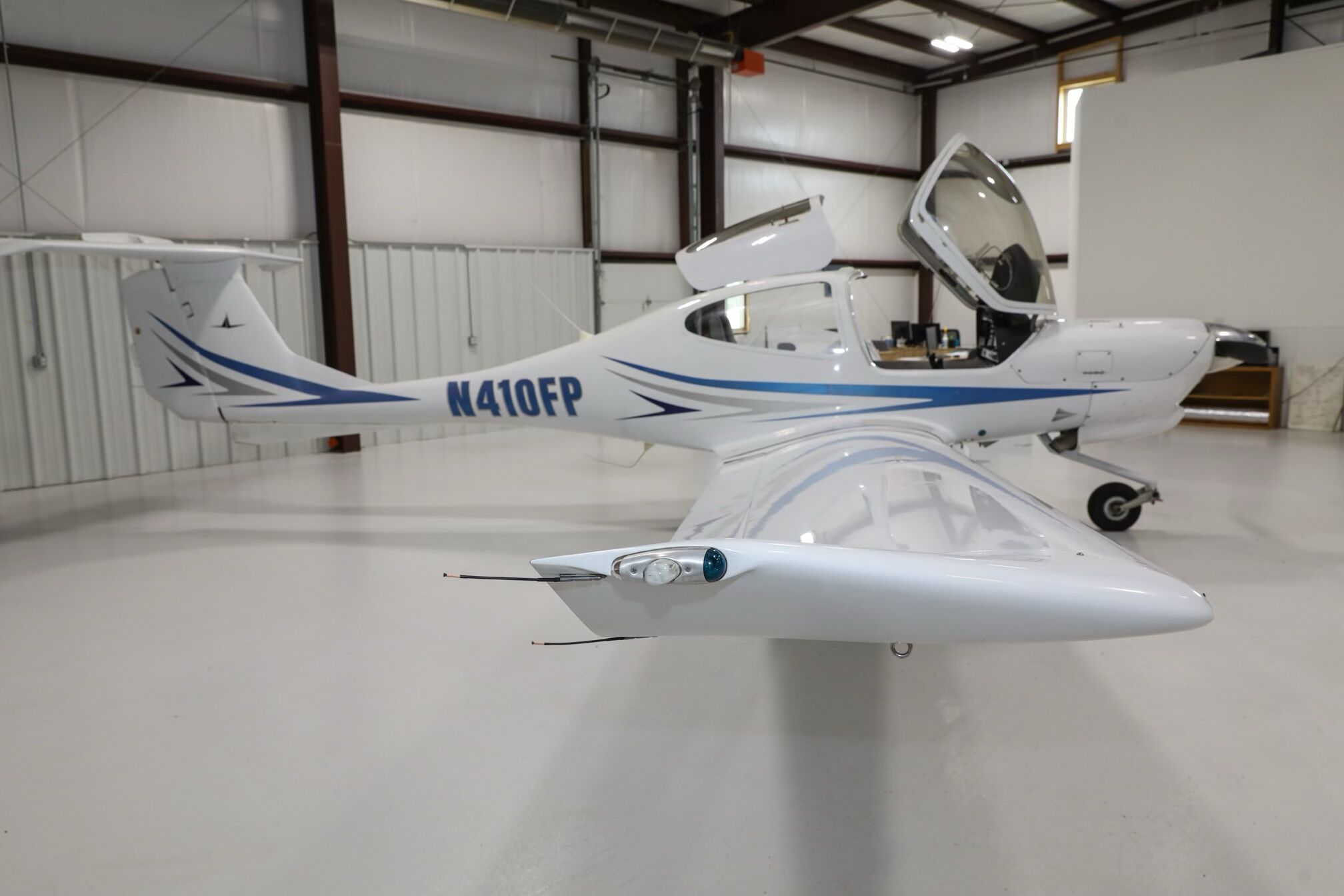

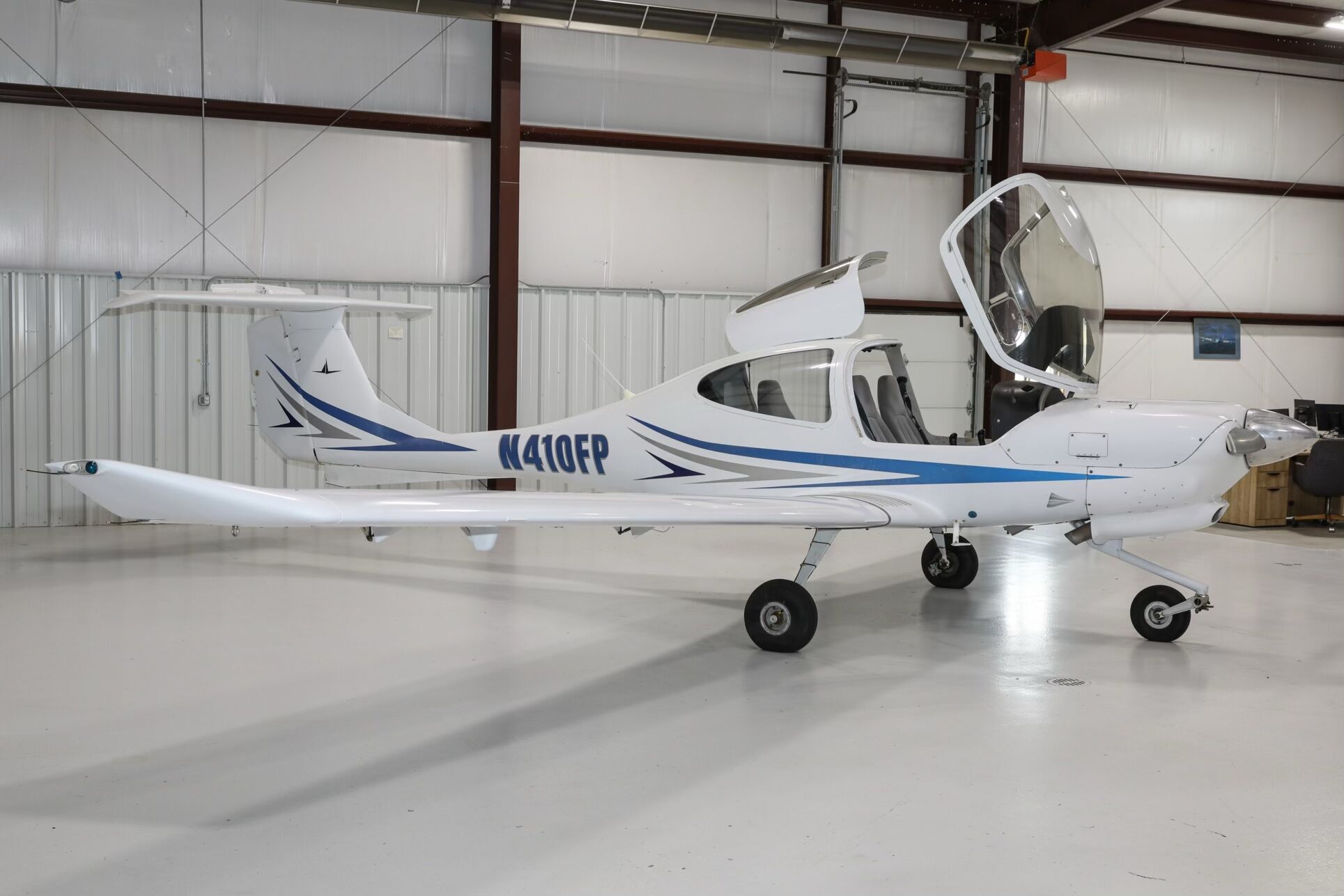

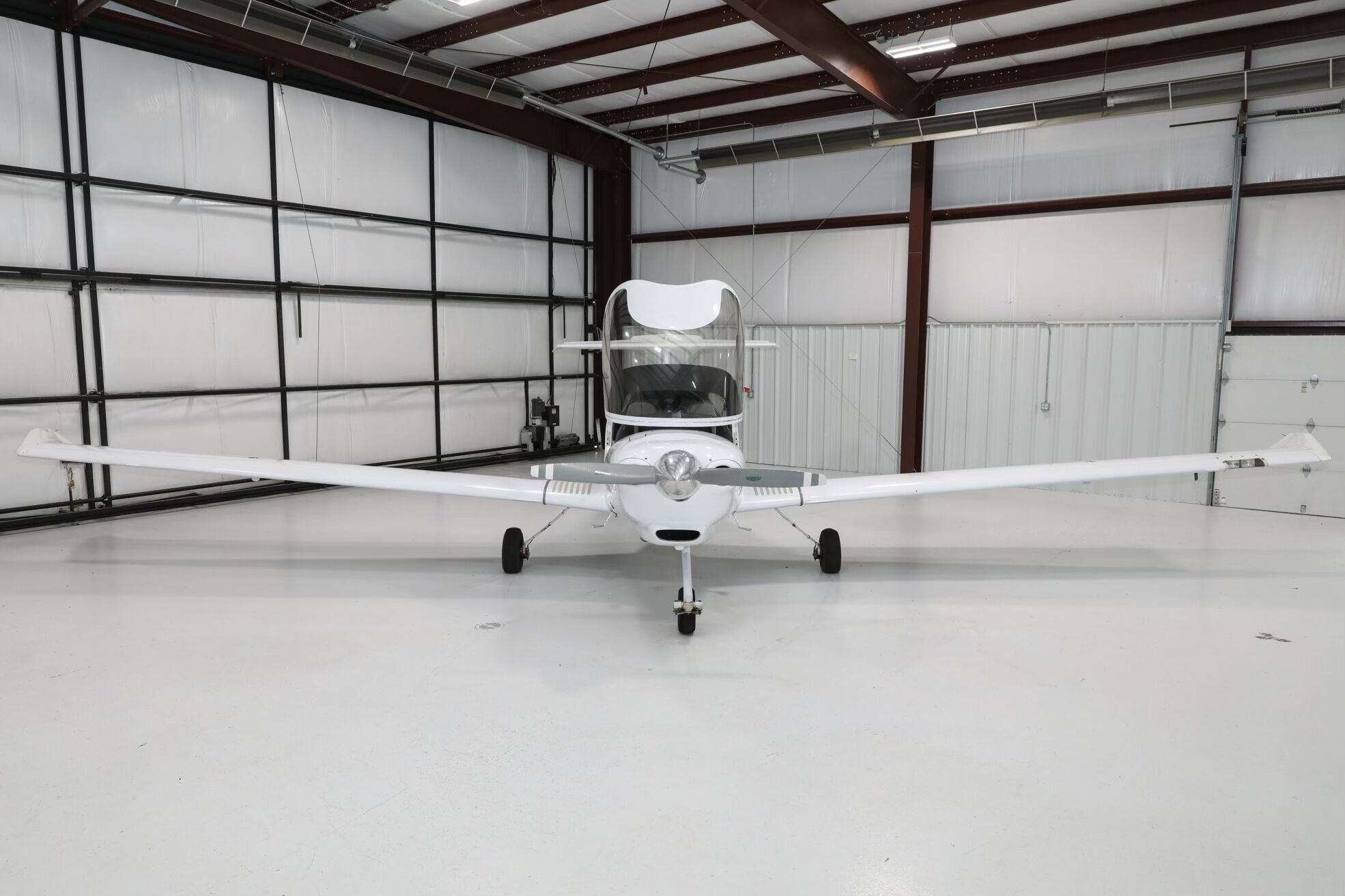

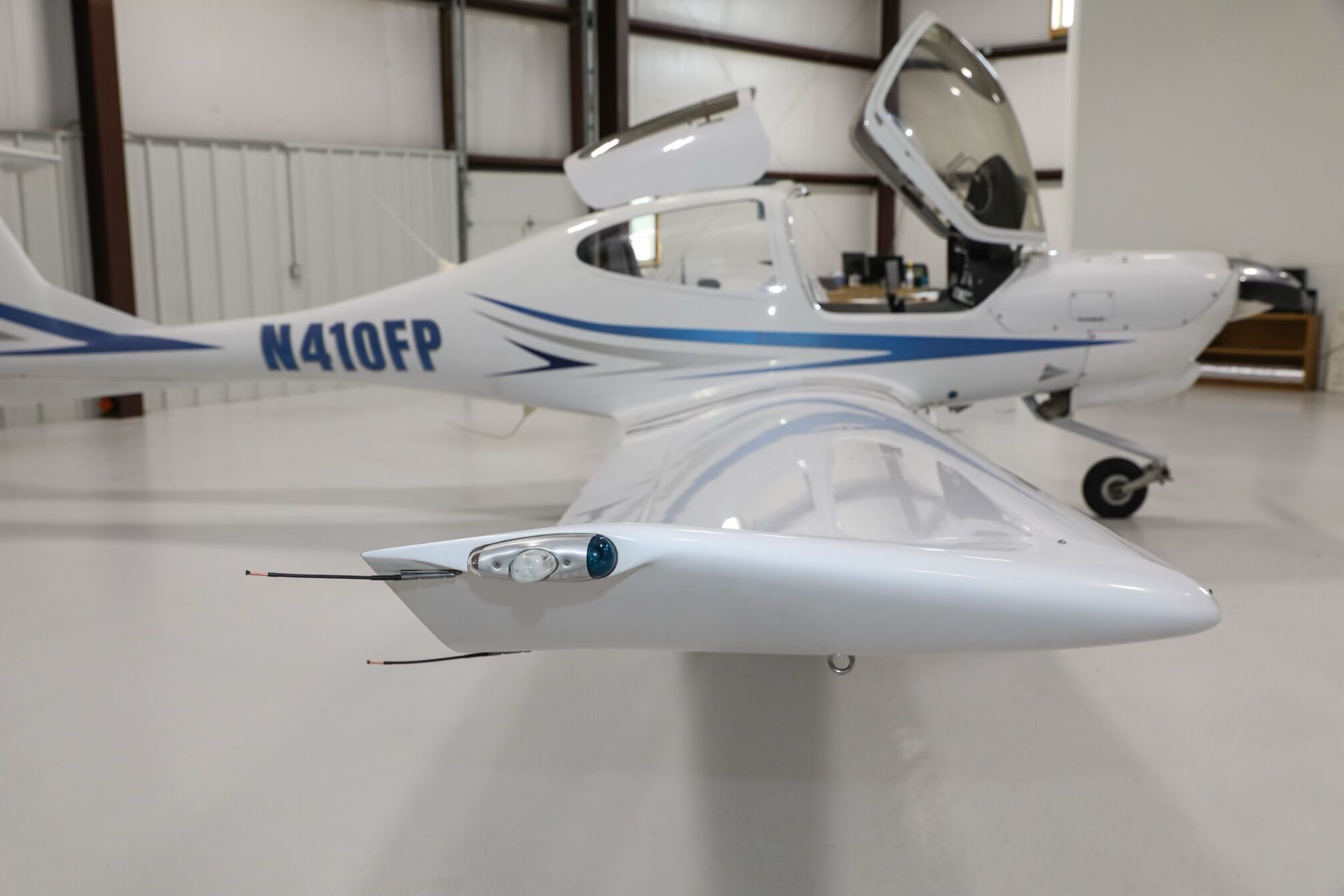

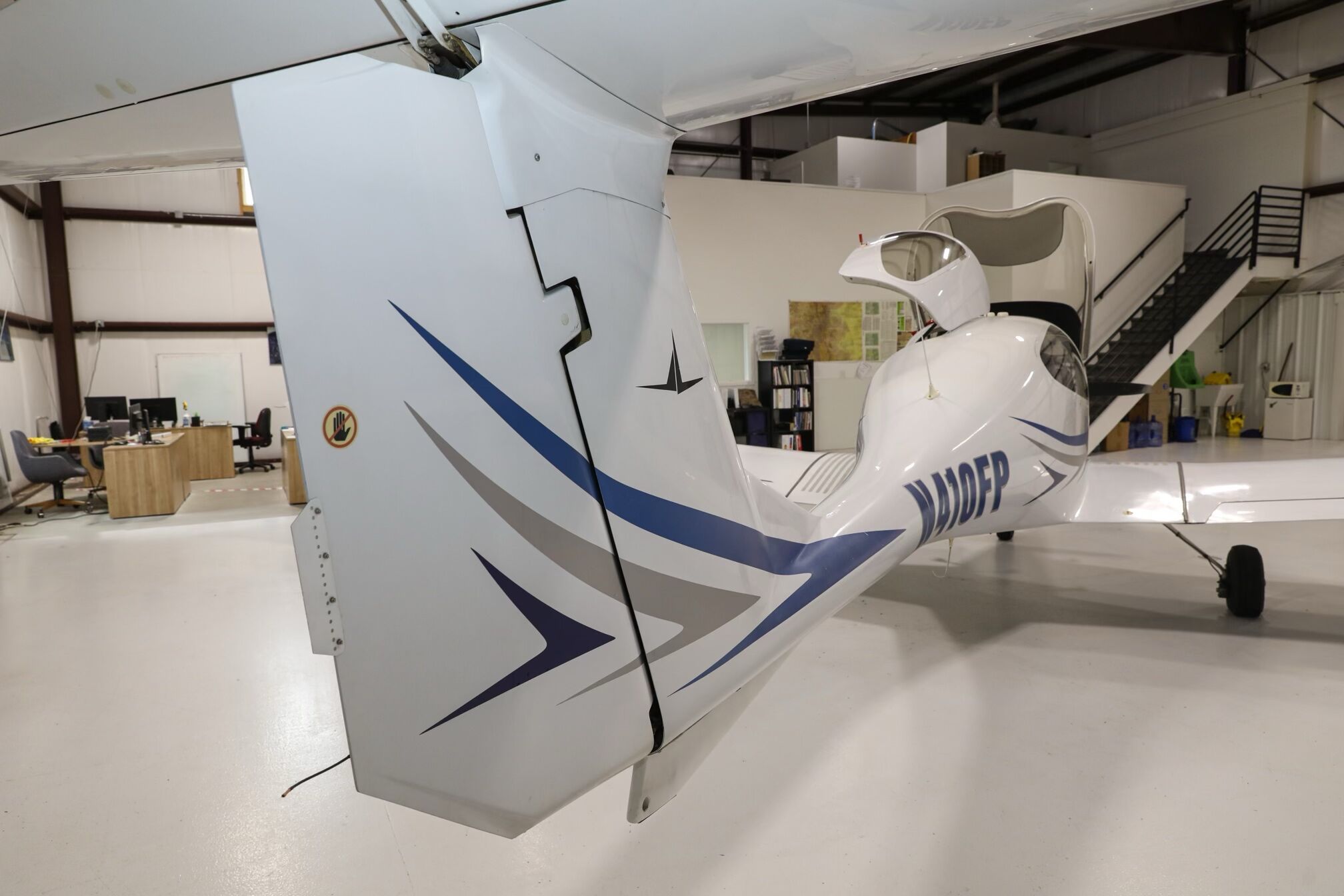

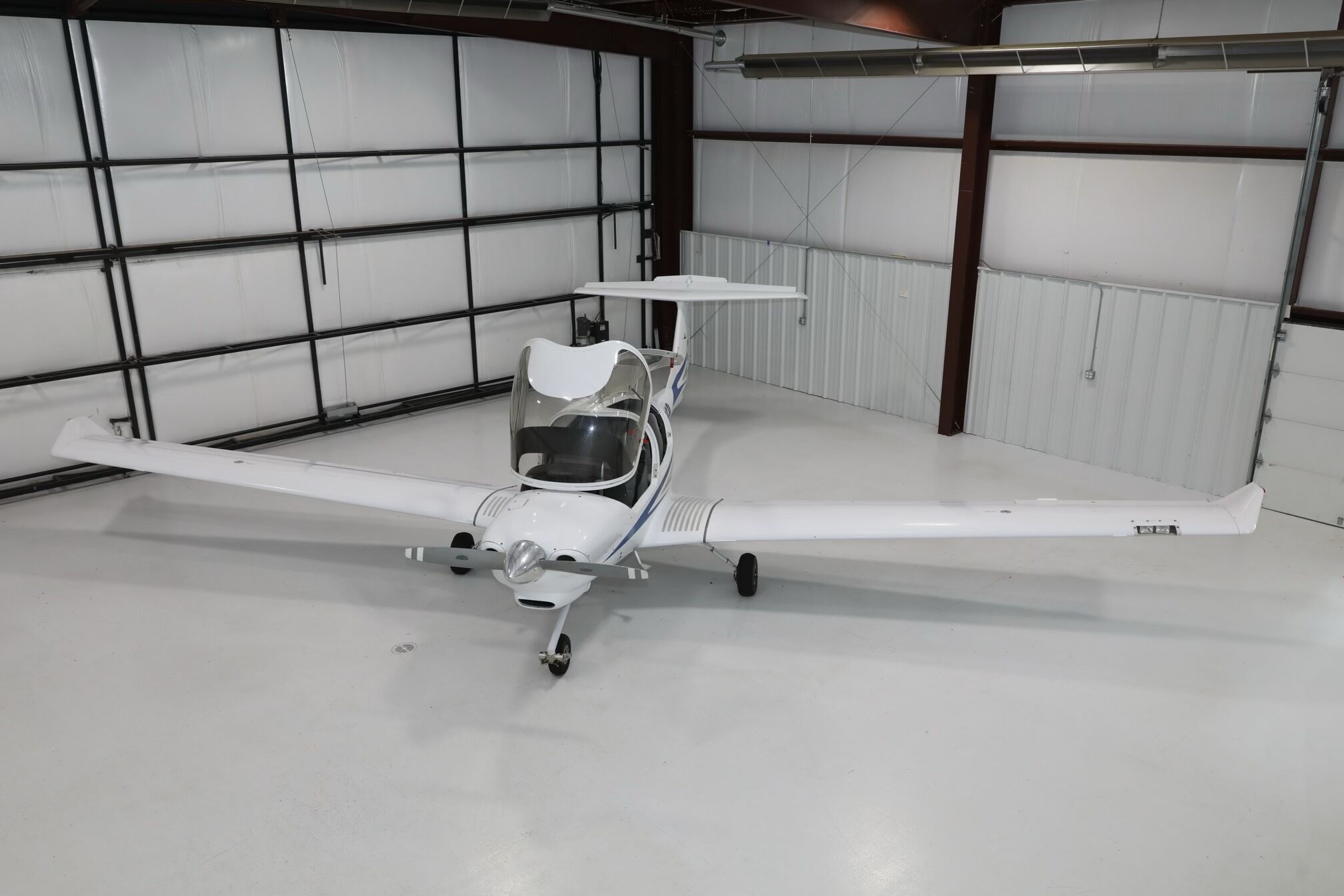

2006 Diamond DA40-FP Diamond Star
5,870 Hours TTSN
Useful Load = 829 lbs.
Basic Empty Weight = 1,706 lbs.
Complete Logbooks
No Known Damage History
POWERPLANT
INSPECTION & PROGRAM STATUS
Annual Inspection Completed January 2026
ELT Due May 2027
**All specifications subject to verification by purchaser
AVIONICS

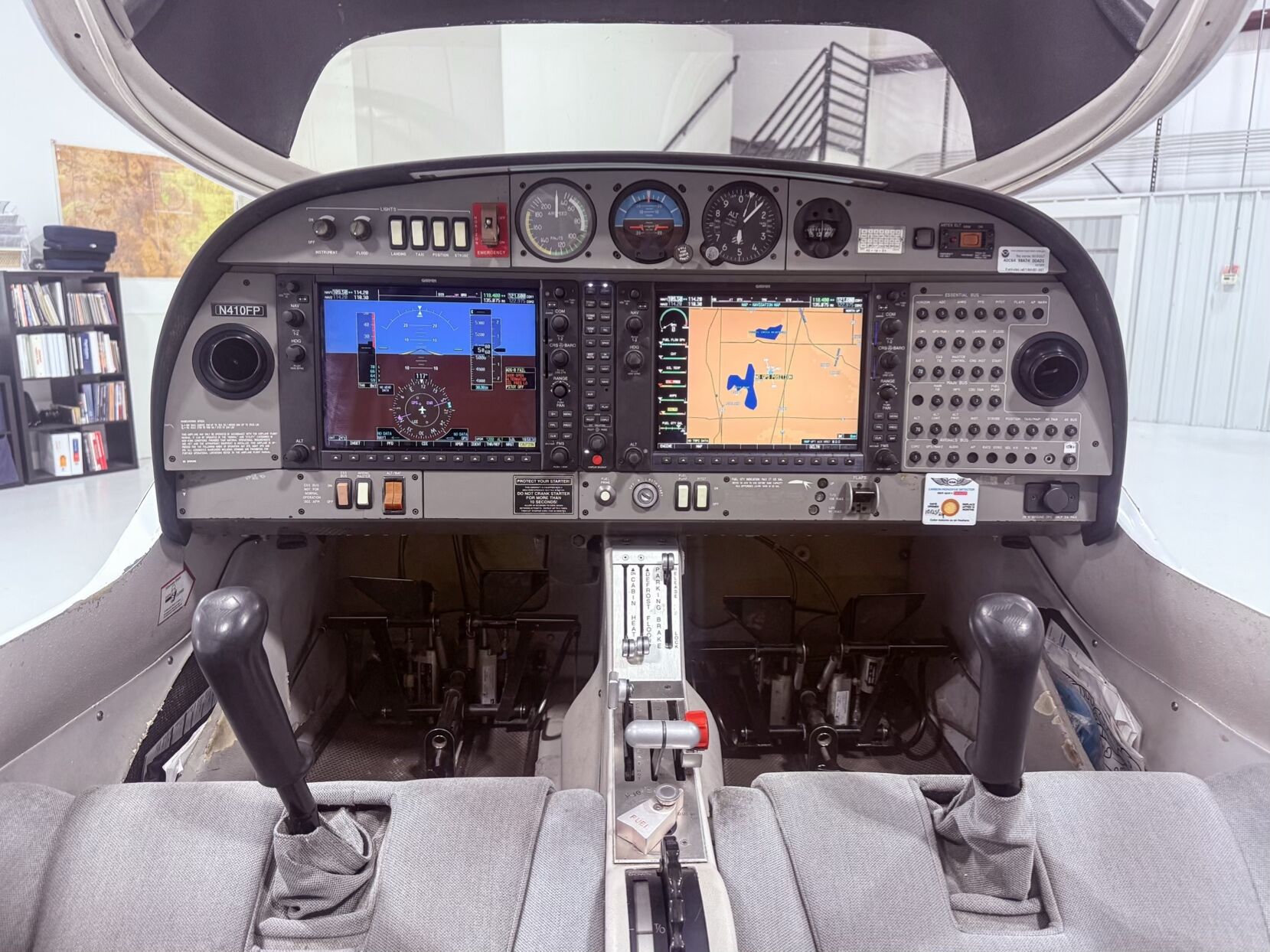

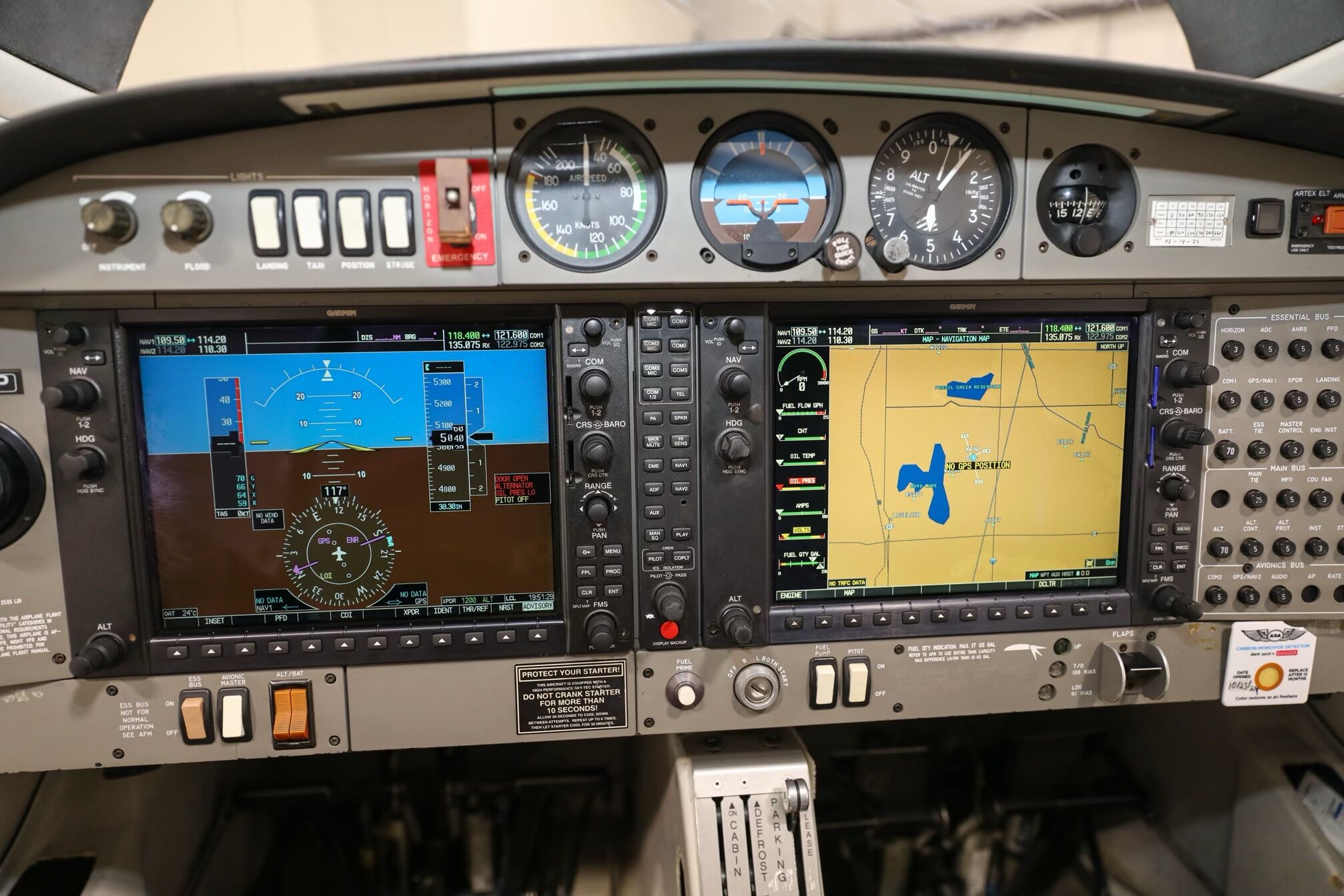

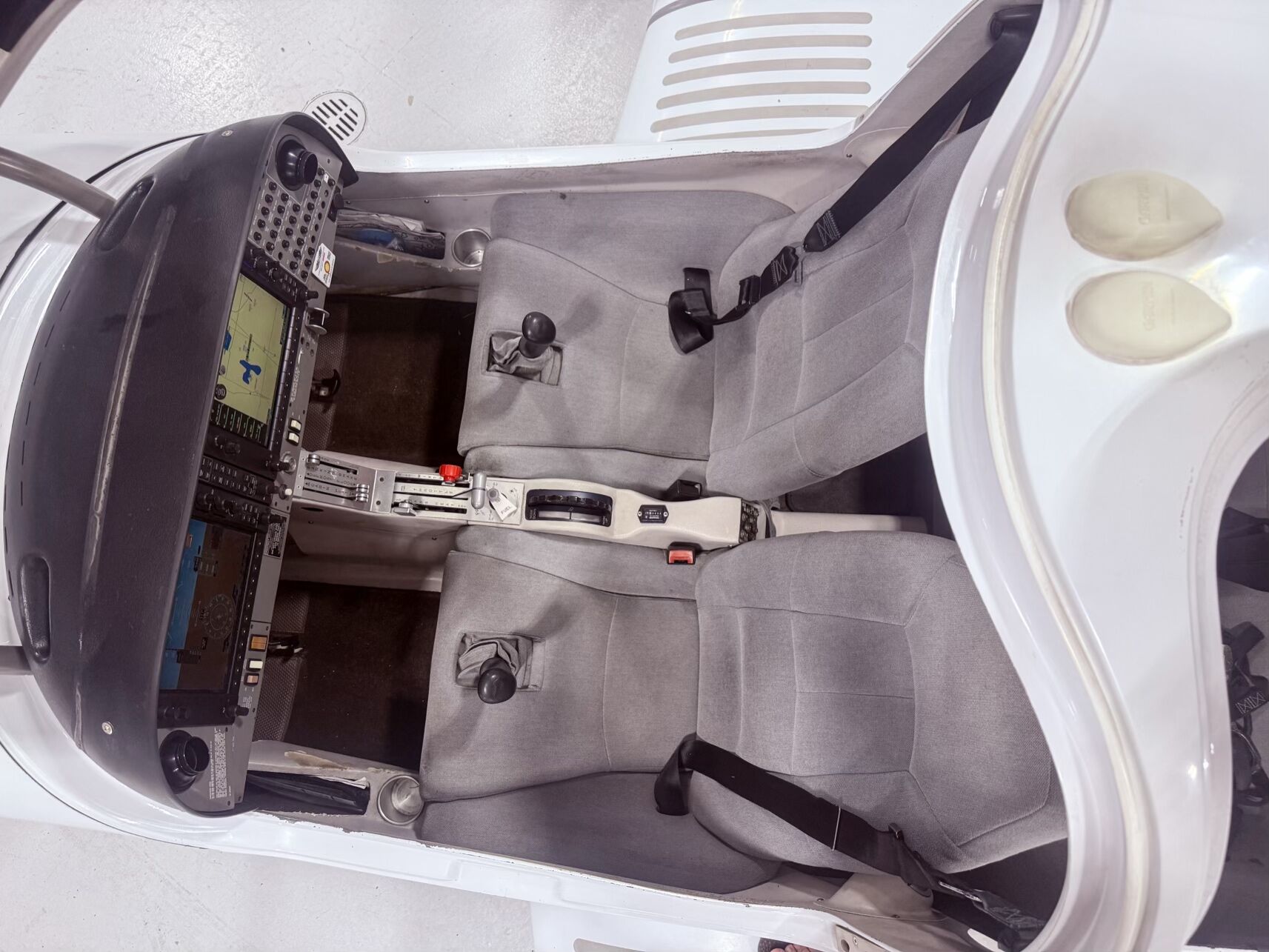

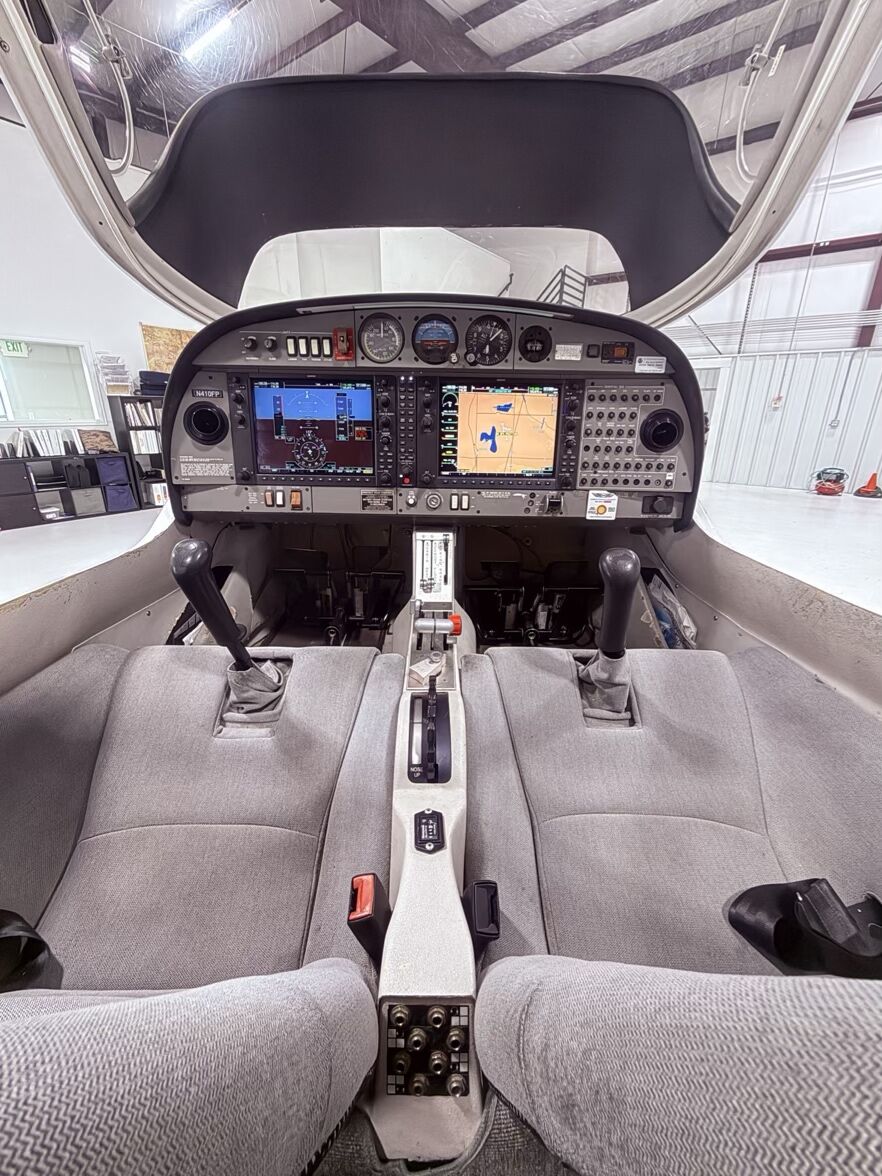

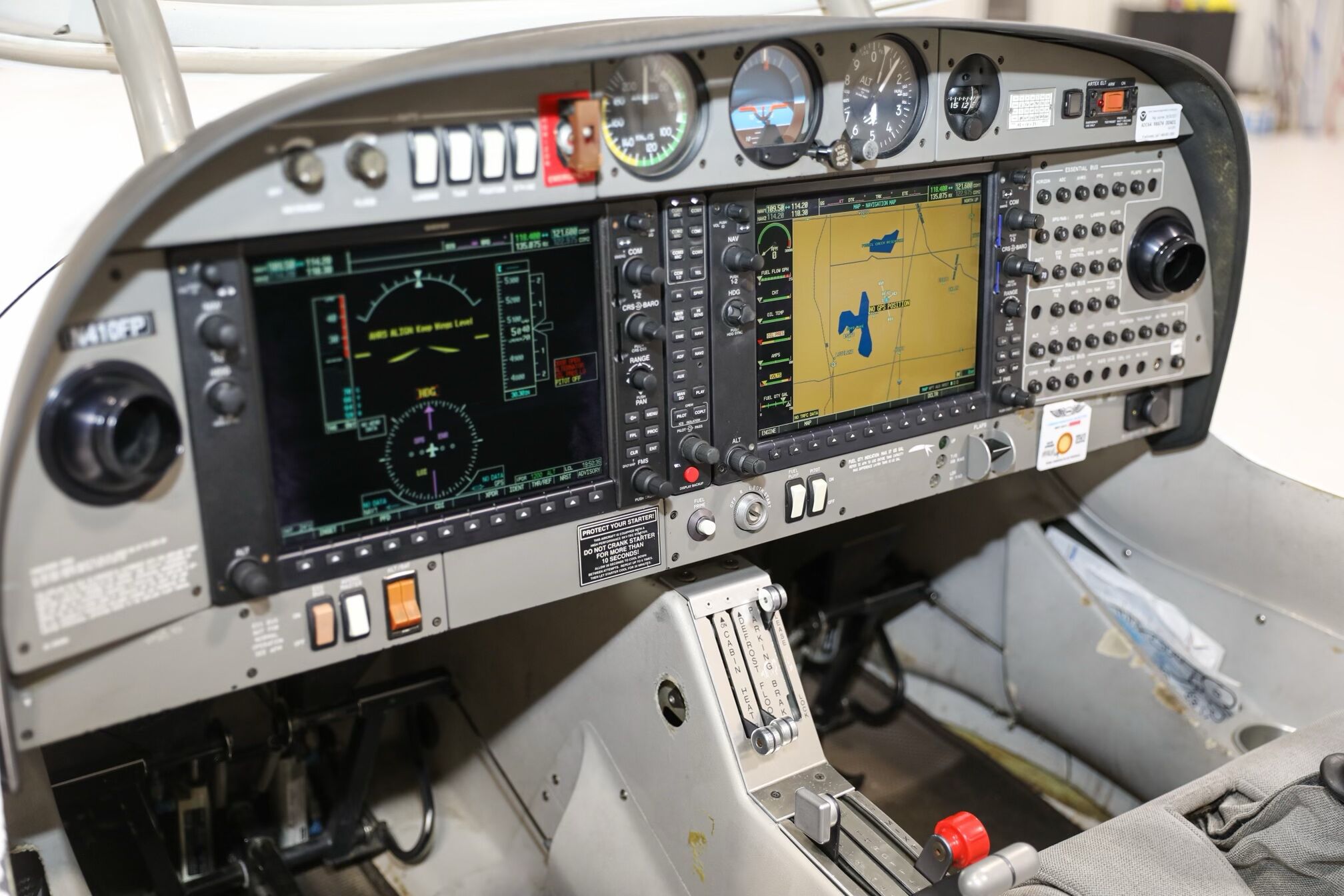

Garmin G1000 Integrated Flight Deck:

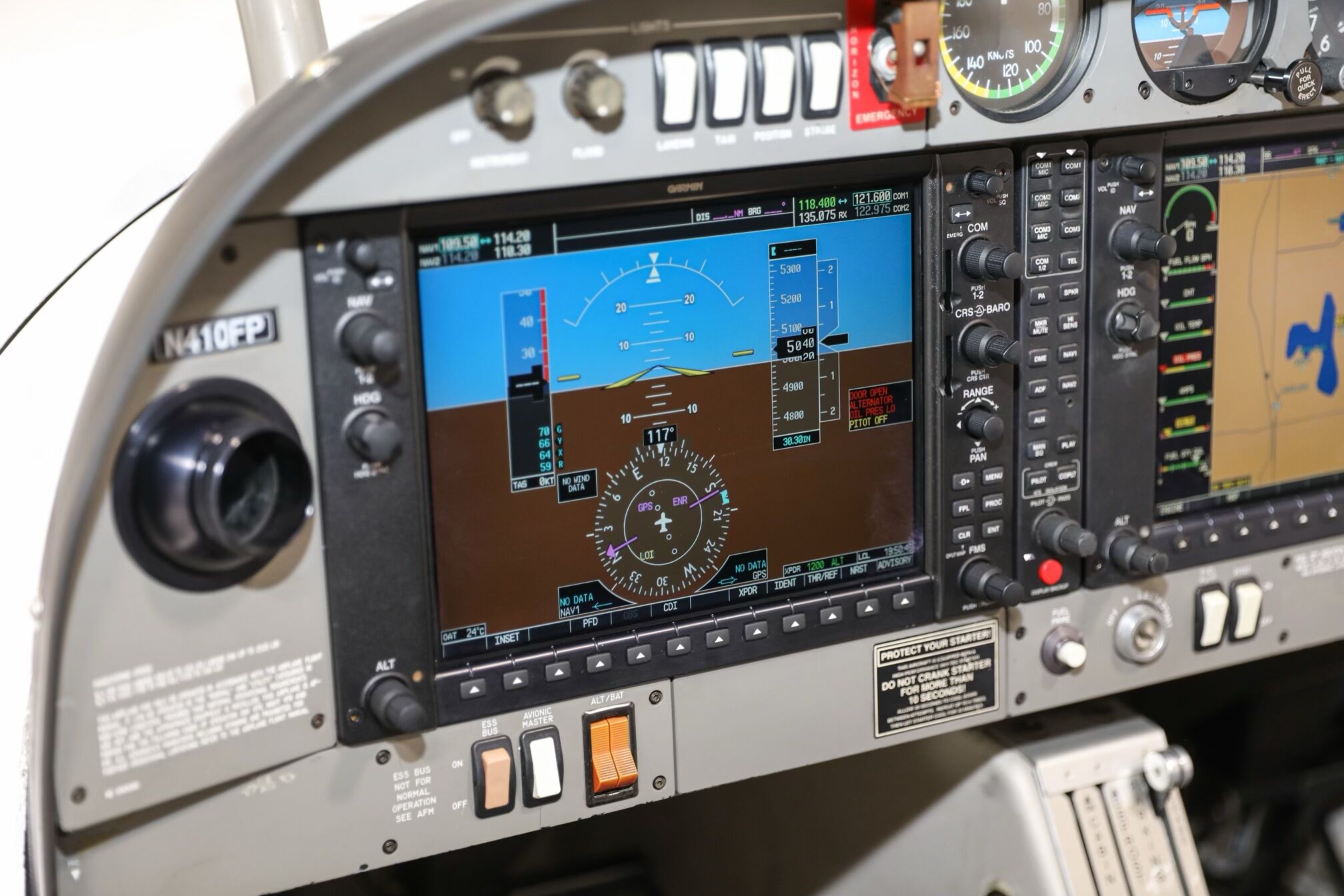

Garmin GDU 1040 – 10" Primary Flight Display (PFD)

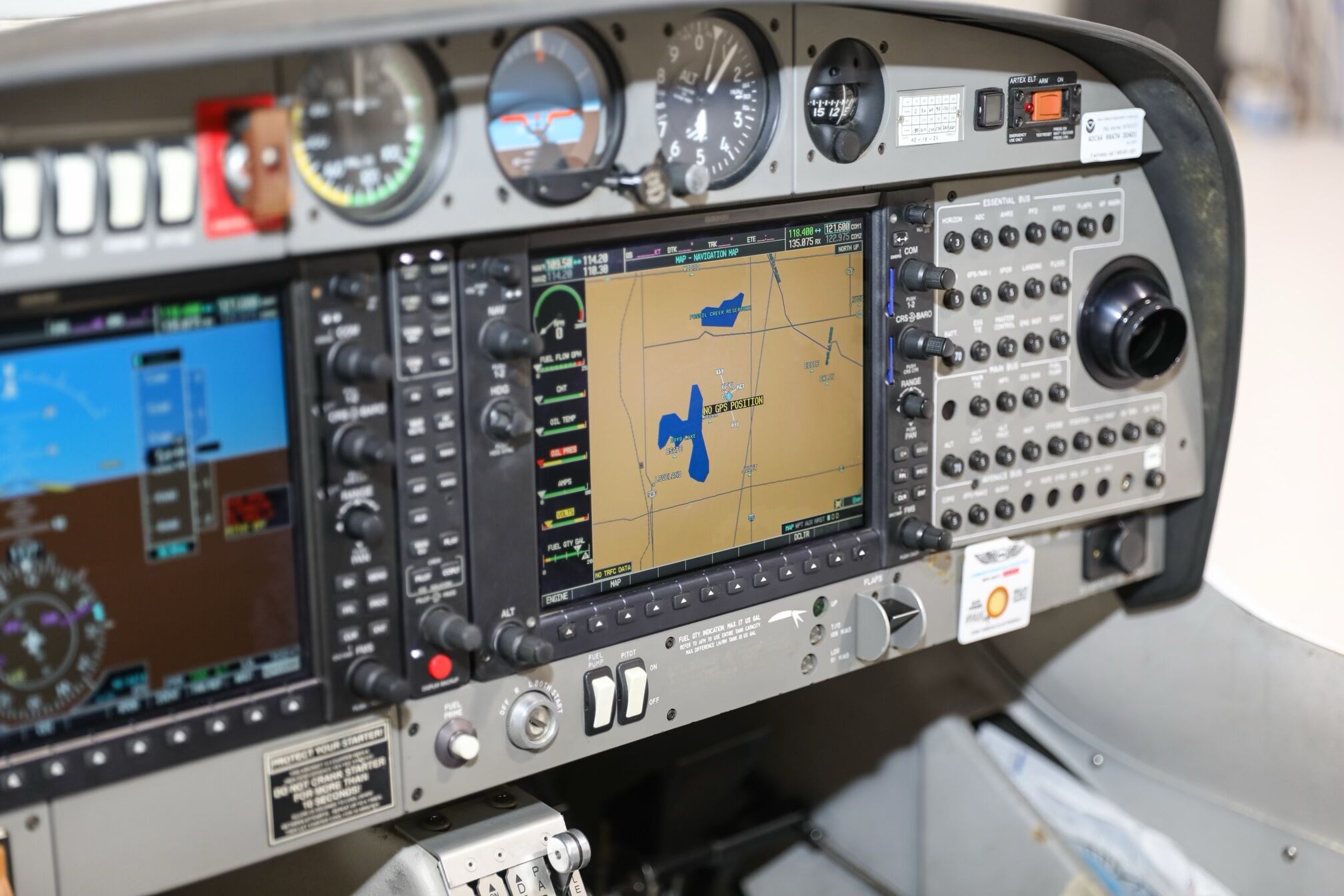

Garmin GDU 1044 – 10" Multi-Function Display (MFD)
Garmin System Software Version 0.22
Garmin Integrated VFR Terrain Awareness System
Dual Garmin GIA 63 Integrated Radio Modules featuring:
- IFR-Approved GPS
- VHF Navigation with ILS
- VHF Communications with 16-Watt Transceivers
Garmin GDC 74 Digital Air Data Computer
Garmin GRS 77 Solid-State AHRS
Garmin GTX 335R Transponder
Garmin GEA 71 Airframe/Engine Interface Unit
Garmin GMA 1347 Digital Audio Panel
Digital ATC Playback Recording
Garmin GMU 44 Magnetometer
Remote Avionics Equipment Rack

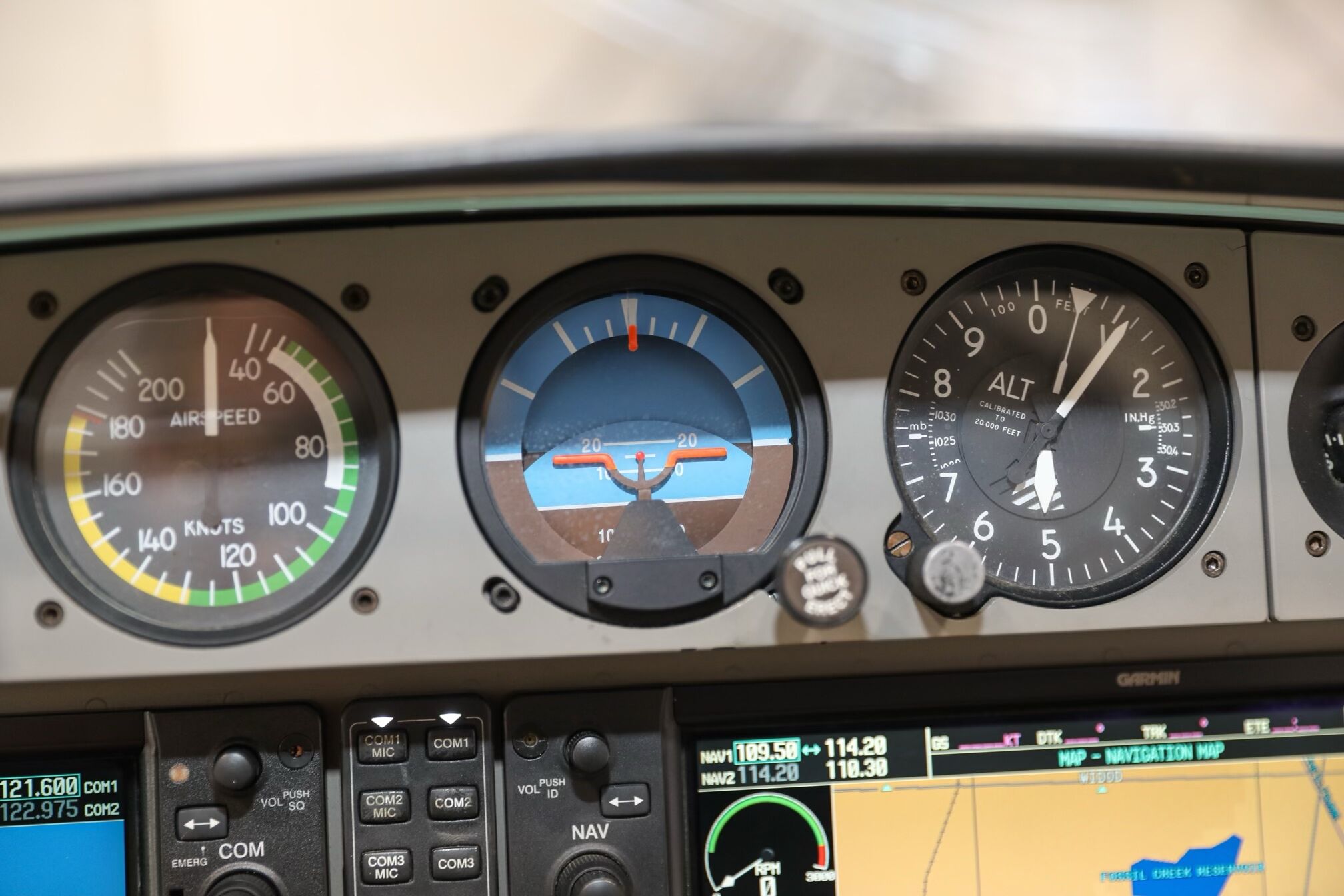

Centrally Located Standby Instrumentation:
- Electric Attitude Indicator
- Airspeed Indicator
- Altimeter
- Magnetic Direction Indicator
Integrally Lit, Laser-Etched Switch Panel Overlays
ADDITIONAL EQUIPMENT
PowerFlow Tuned Exhaust System
EZ Heat Engine Pre-Heater
Plane Power Heavy-Duty Alternator
Upgraded Heavy-Duty Starter
Dual USB Power Ports Installed

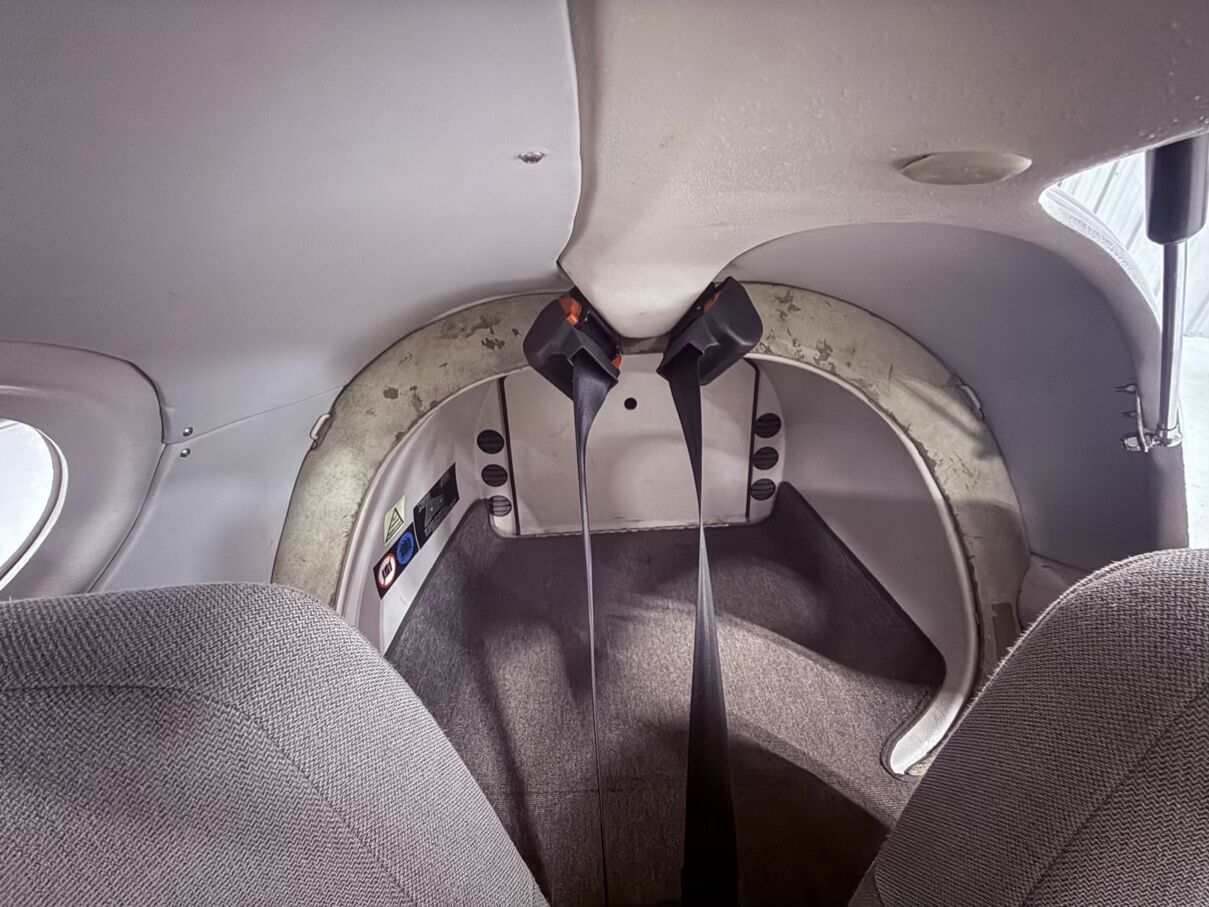

Four-Way Baggage Compartment System

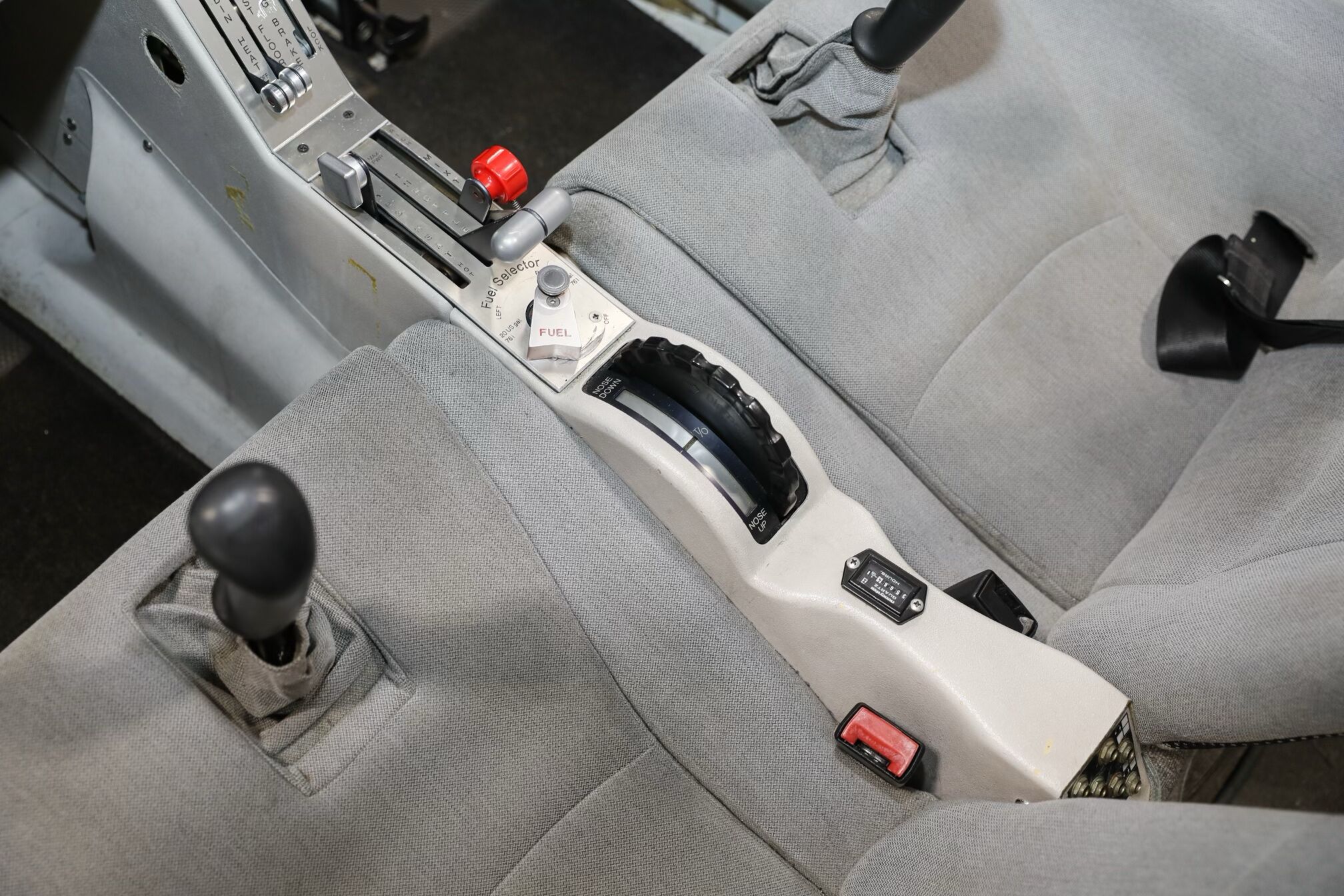

Cockpit Convenience Package:
- Rubber Cable Covers
- Large-Capacity Side Pockets
- Integral Cup Holders

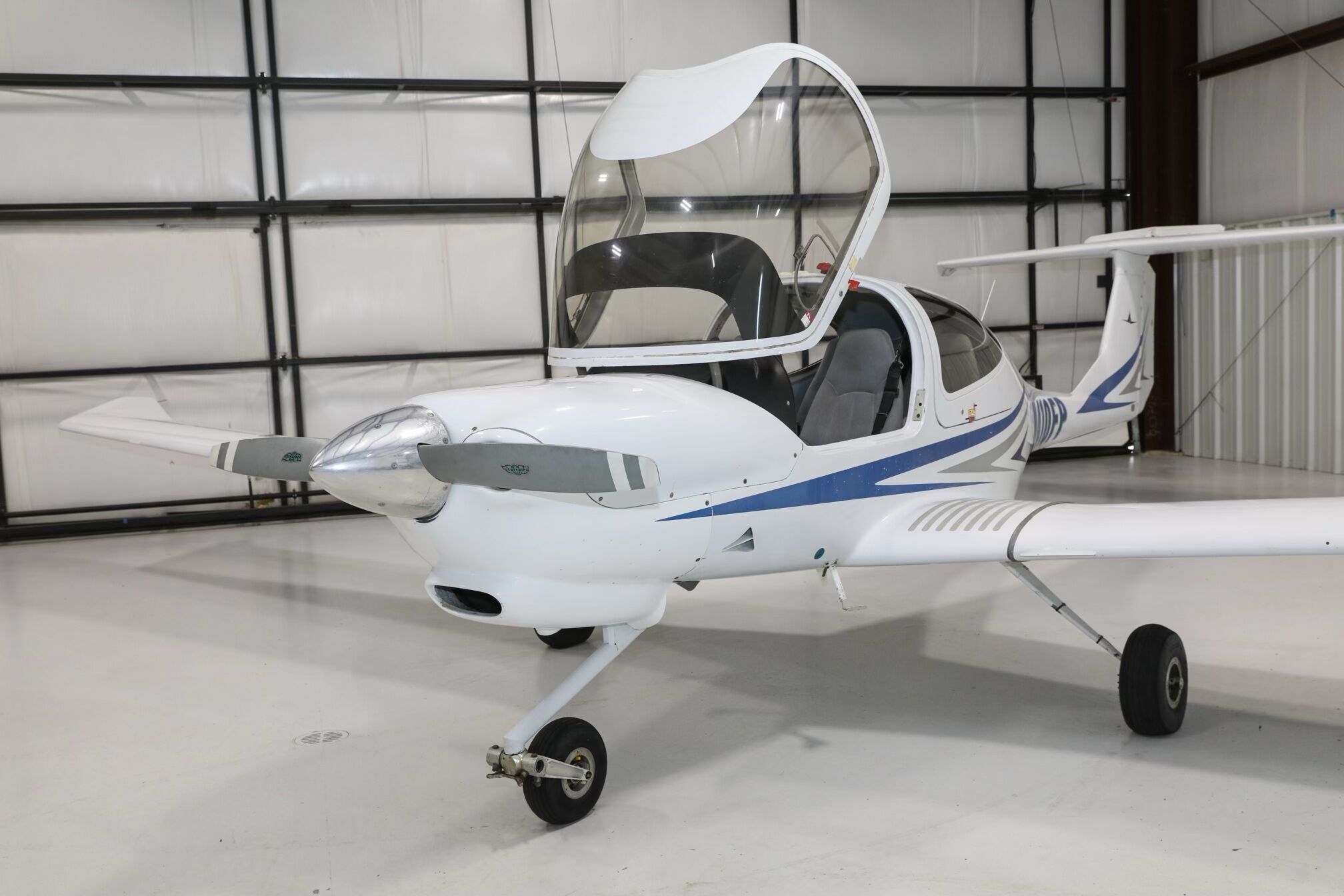

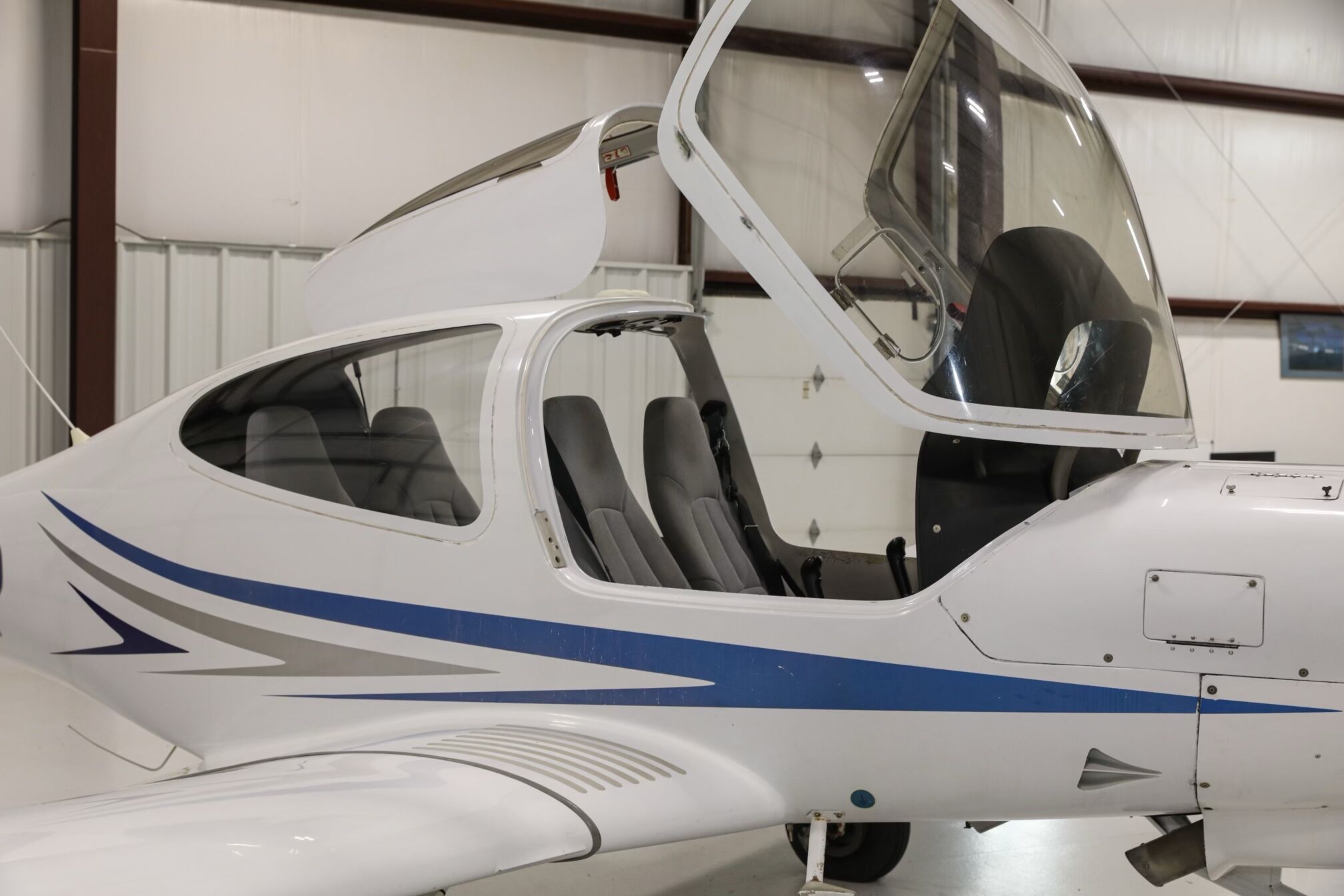

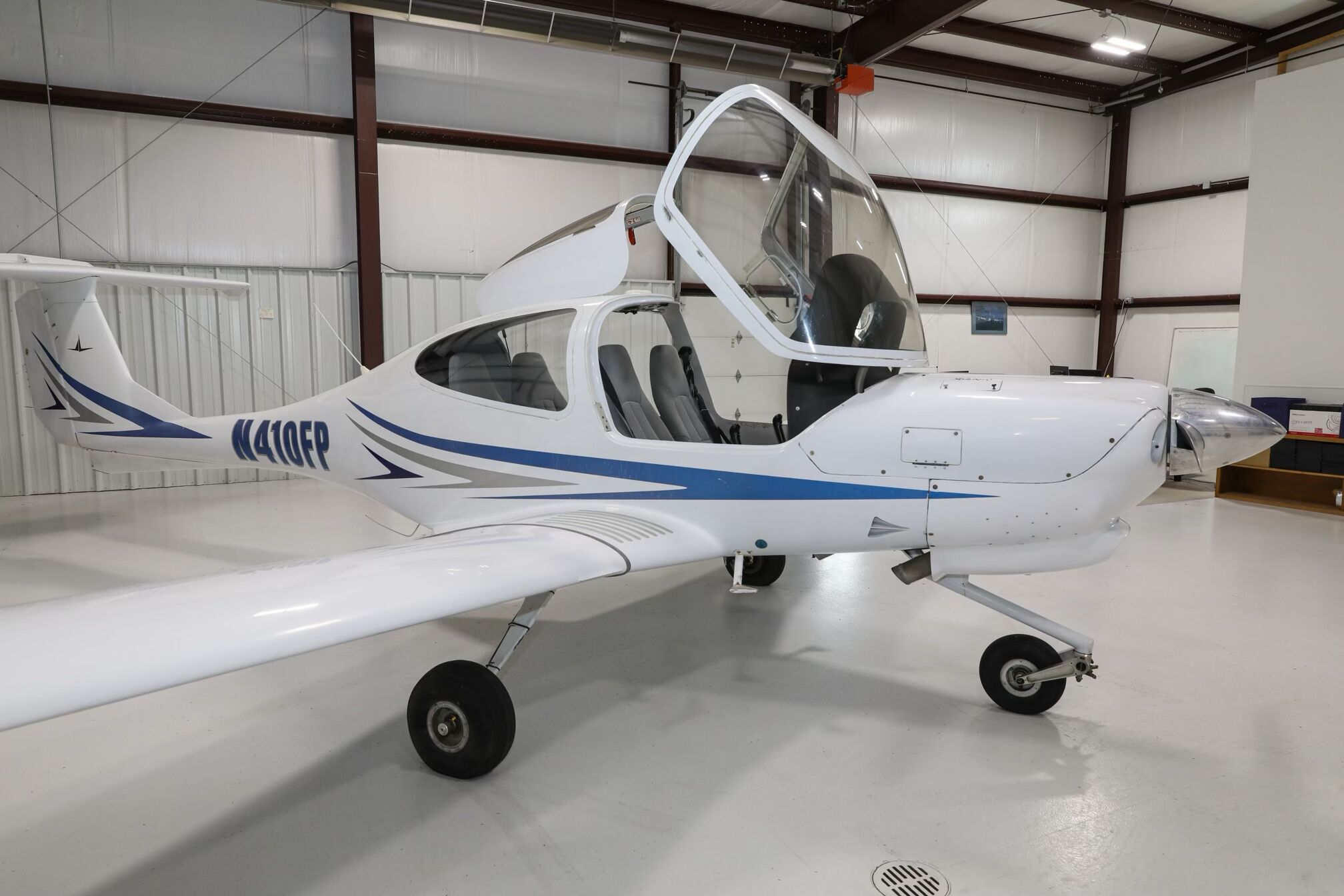

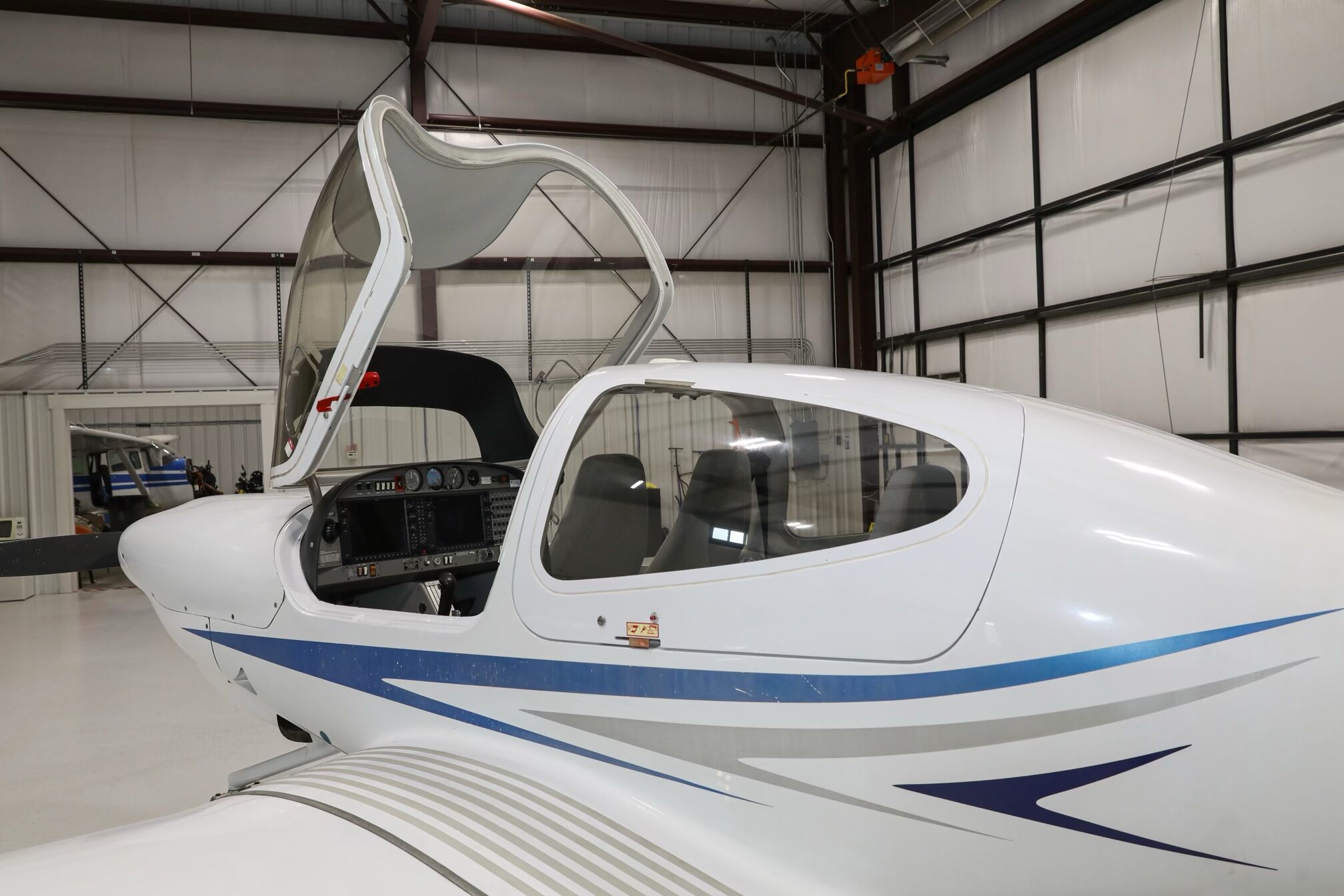

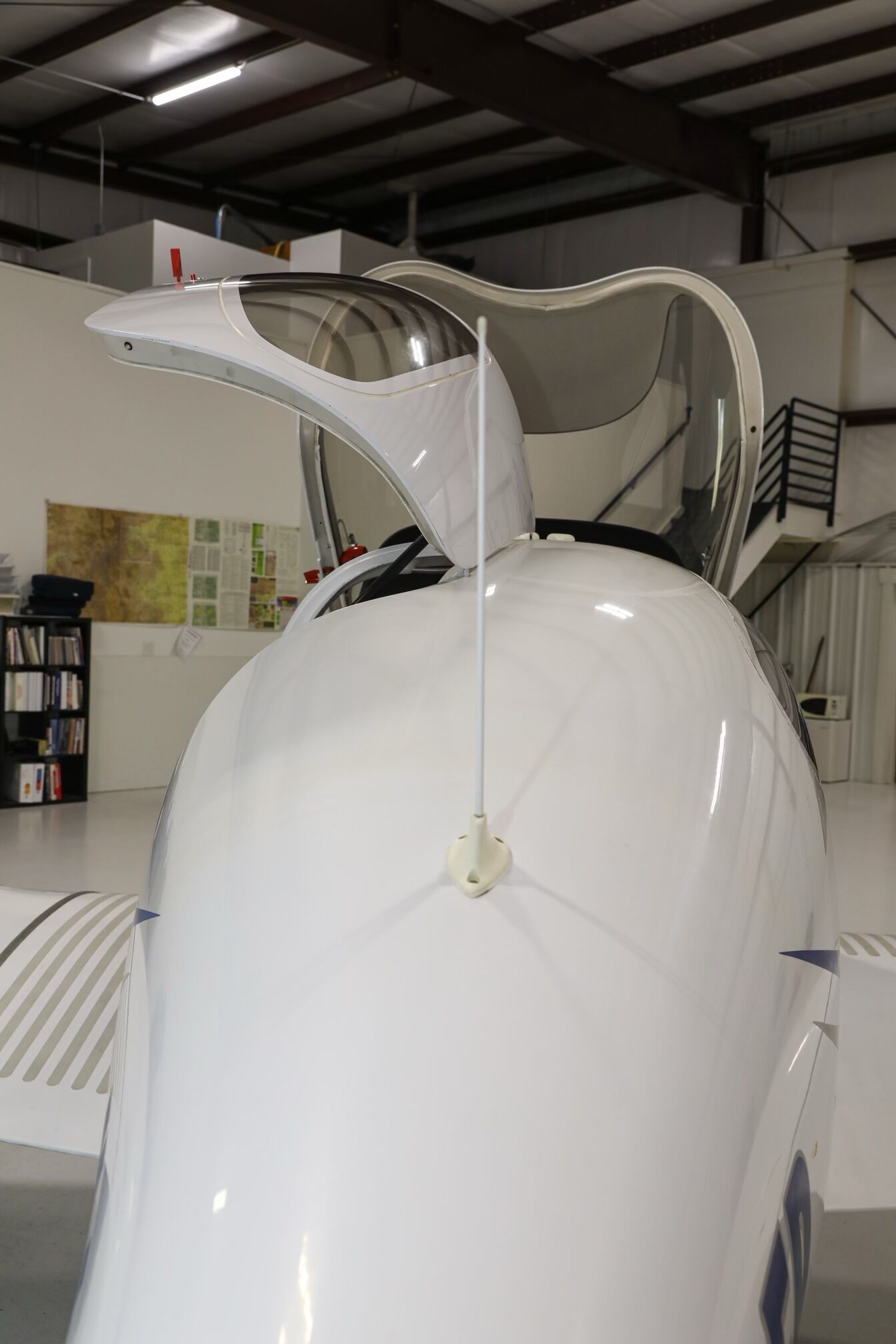

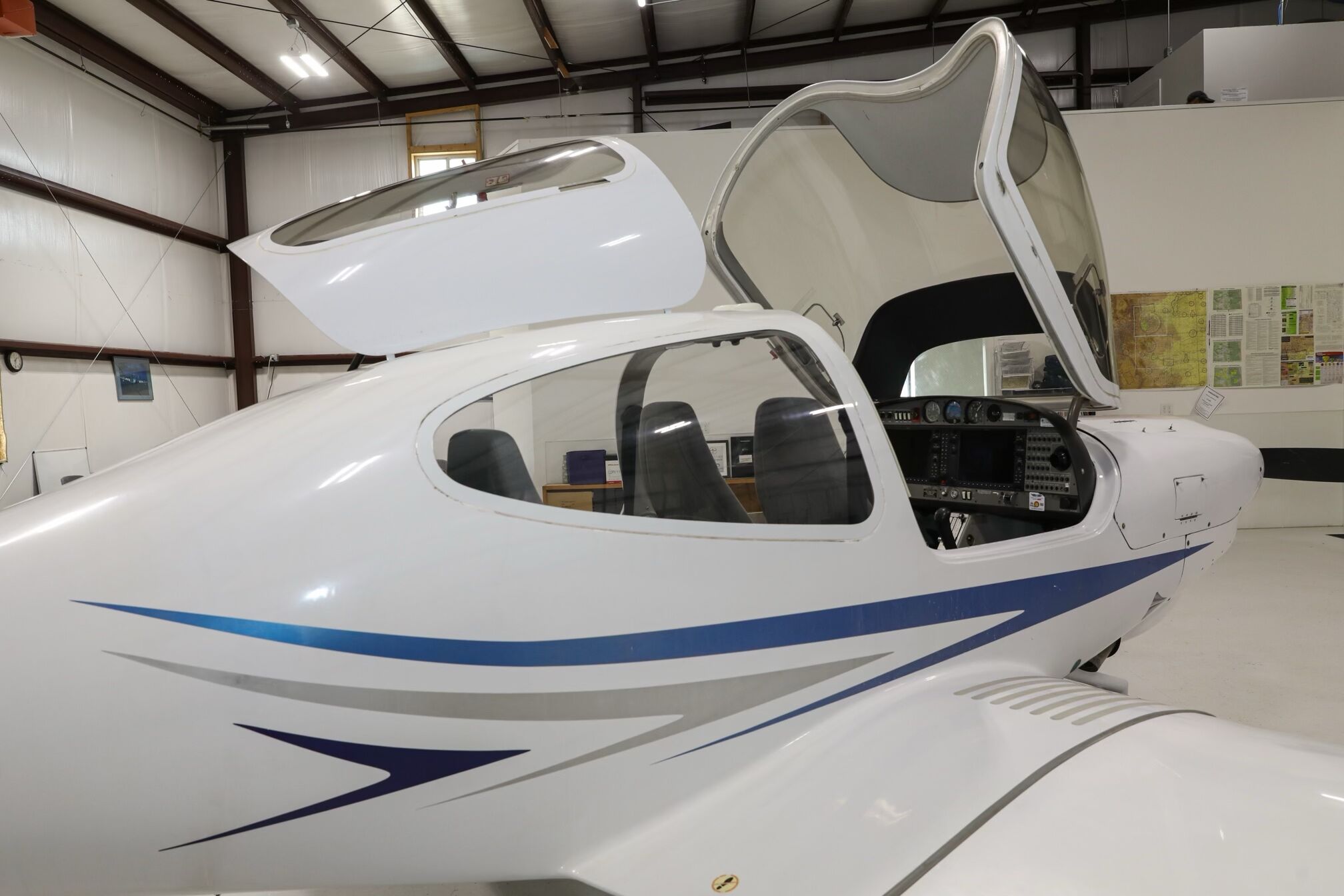

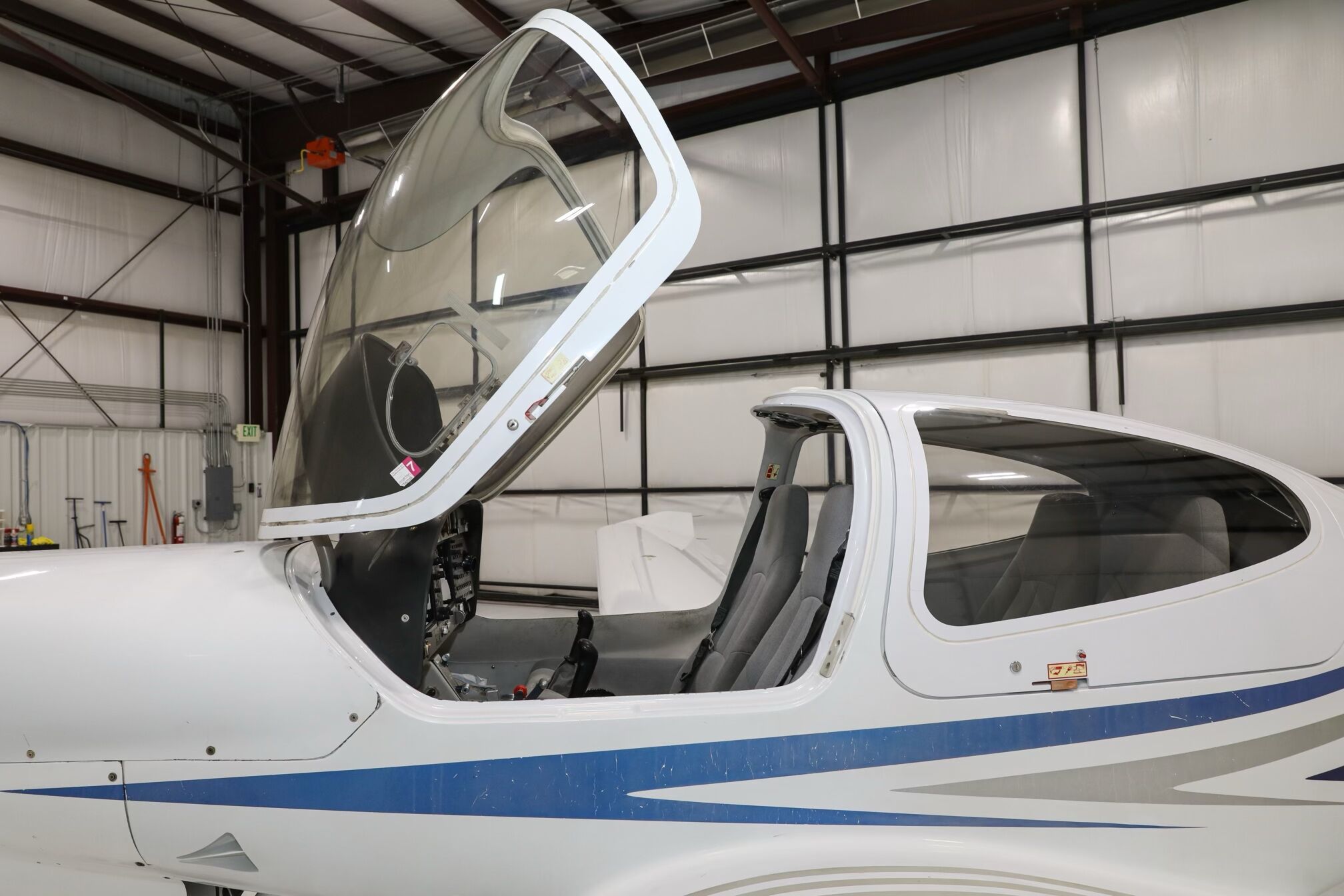

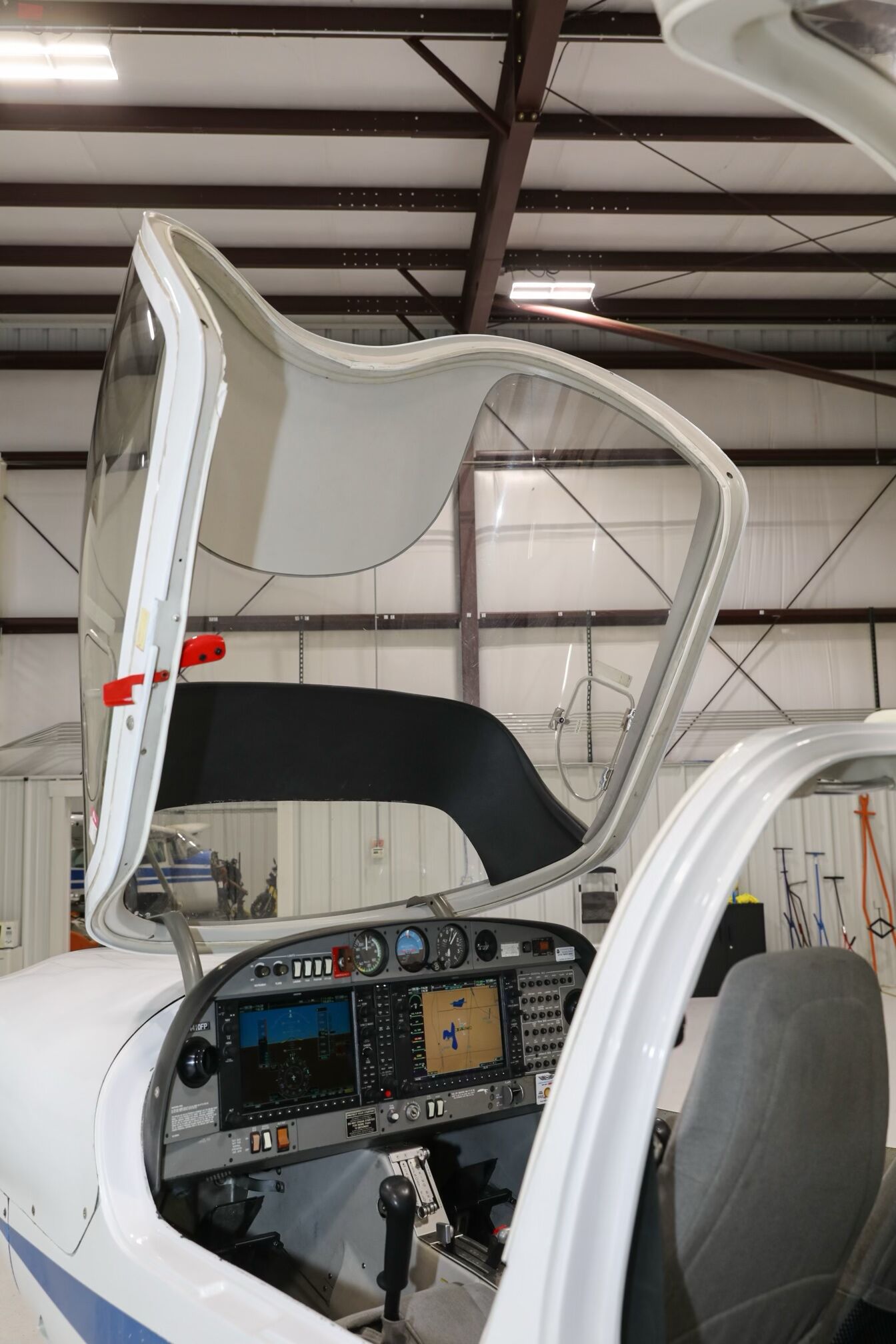

Larger Factory-Style Bubble Canopy
- Provides increased headroom
- Ideal for taller pilots and flight school operations
Canopy Vent Window Scoops
Bruce's Canopy Cover
